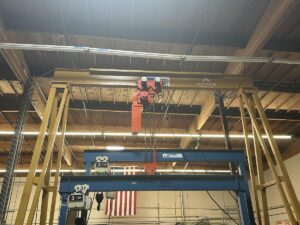

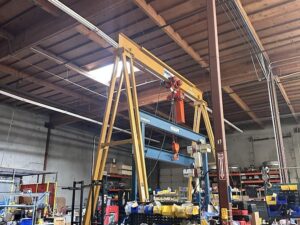

SPANCO GANTRY, MODEL #7PF1818 ELEPHANT DAM-7.5-20-3-460-60
SPANCO GANTRY, MODEL #7PF1818
MANUAL PF SERIES GANTRY CRANE STEEL
FIXED HEIGHT AND SPAN
Capacity: 15000 lbs
Overall Span: 18′ – 0”
Clear Span: 15′ – 0”
Height Under Beam: 18′ – 0”
Overall Height: 19′ – 6” **(Hold)**
Tread Width: ± 6′ – 8”
Beam Size: S18X54.7#with cap channel
Casters: 12” Polyurethane Tread W/4 Position Swivel
Locks
Flange Width: 6″
End of Gantry Load: 18812 lbs
Load per Wheel: 9406 lbs
Estimated Weight (Each): 3125 lbs
Load per Wheel: 9406 lbs
Coating & Painting: PAINT, SPRAY YELLOW
ELEPHANT DAM-7.5-20-3-460-60
Elephant DAM Series Electric Chain Hoist w/
Motorized Trolley
Capacity: 7.5 ton metric tons (16,500 lbs.)
Chain Length: 20′
Pendant Length: 18′
No. of Falls: 3
Lifting Speed: 7 FPM
3 Phase – 460v Only – 60Hz
Lug mounted to MAS Trolley
Flange Range: 5.00″ ~ 7.00″”
Traversing Speed: 39 FPM
Includes E-Stop Pendant and Chain Container
Elephant JAPAN
-ASME H3 MOTOR
– CORROSIVE RESISTANT LOAD CHAIN
– JIS / ISO M5
– FEM 2m
– IP54 HOIST PROTECTION
– IP65 NEMA 4X PENDANT PROT
