Description
MORI SEIKI NV5000A Vertical Machining Center
- Manufacturer: MORI SEIKI
- Model: NV5000A
- Machine Type: CNC Vertical Machining Center

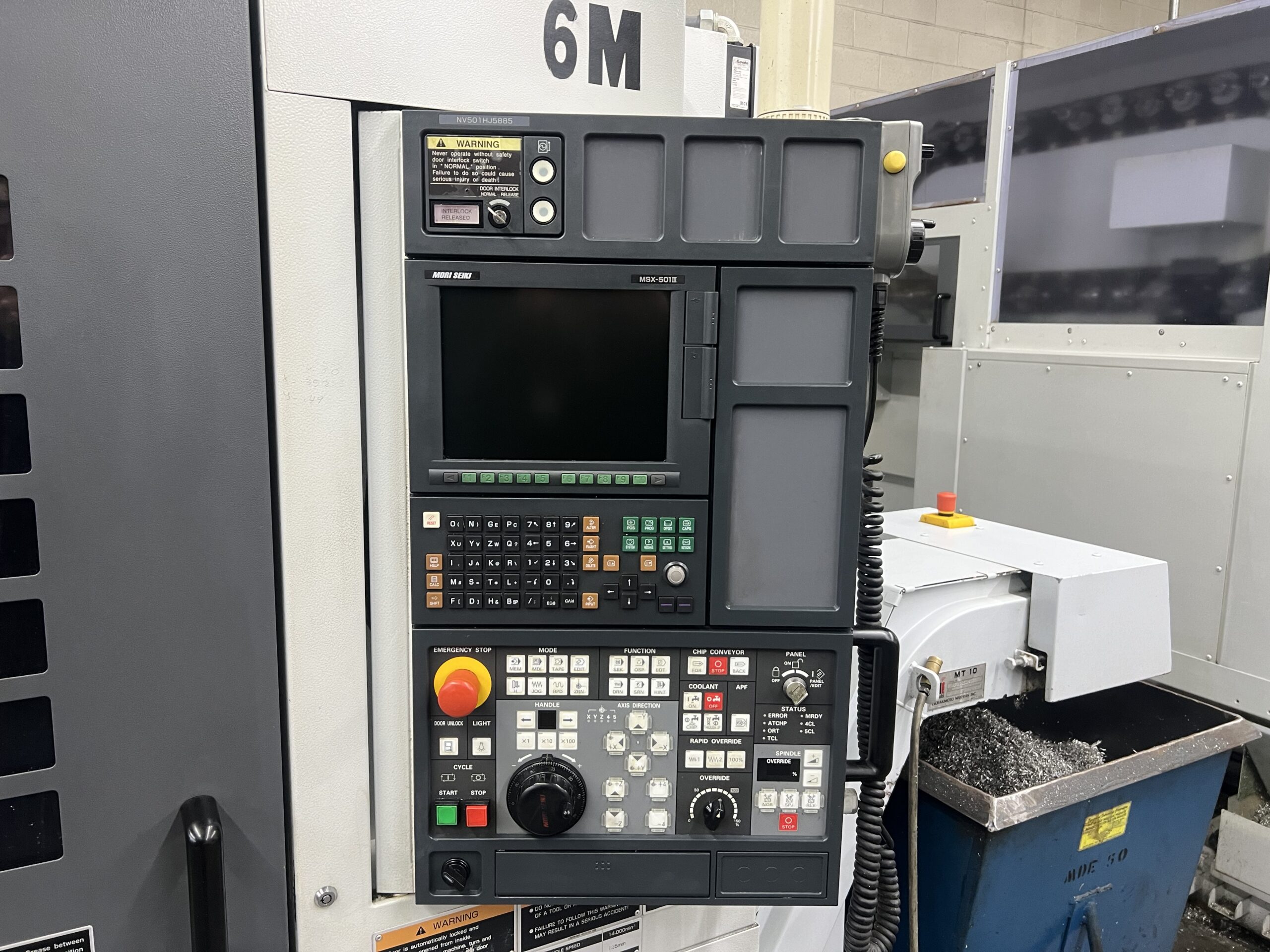

- Control: Typically FANUC MSC-501 or equivalent CNC control
Key Specifications
- X-Axis Travel: ~31.5″ (~800 mm)
- Y-Axis Travel: ~20.1″ (~510 mm)
- Z-Axis Travel: ~20.1″ (~510 mm)
- Table Working Surface: ~43.3″ × 23.6″
- Max Table Load: ~2,640 lbs (~1,200 kg)

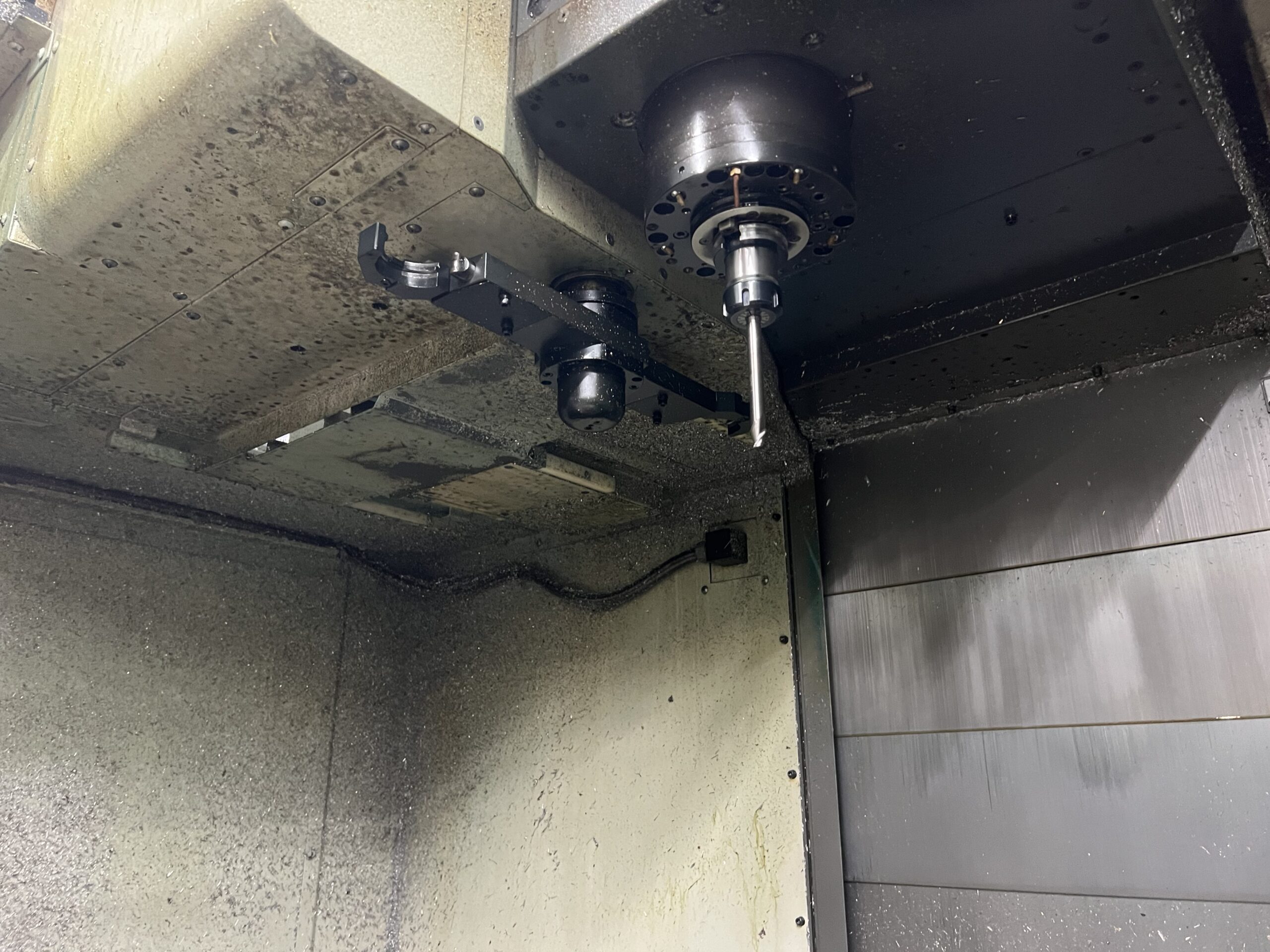

- Spindle Taper: BT-40/CAT-40
- Max Spindle Speed: up to ~12,000 RPM
- Spindle Power: ~30 HP (~22 kW)
- Automatic Tool Changer: ~30-position ATC
- Rapid Traverse Rate: ~1,650 IPM (~42 m/min)
- Coolant System: Standard with chip conveyor
- Machine Weight: ~13,800–15,300 lbs depending on options
General Description
The MORI SEIKI NV5000A is a rugged industrial 3-axis CNC vertical machining center engineered for general milling and precision work. Typical features include a high-speed BT-40/CAT-40 spindle, automatic tool changer, coolant system, and chip conveyor — well suited for a range of production applications.
Notes to Buyers
- Specifications above represent typical values for the NV5000A series; actual machine configuration, control model, and options (such as rotary tables, pallet changers, or probing) should be verified against unit photos and inspection prior to bidding.
