Description

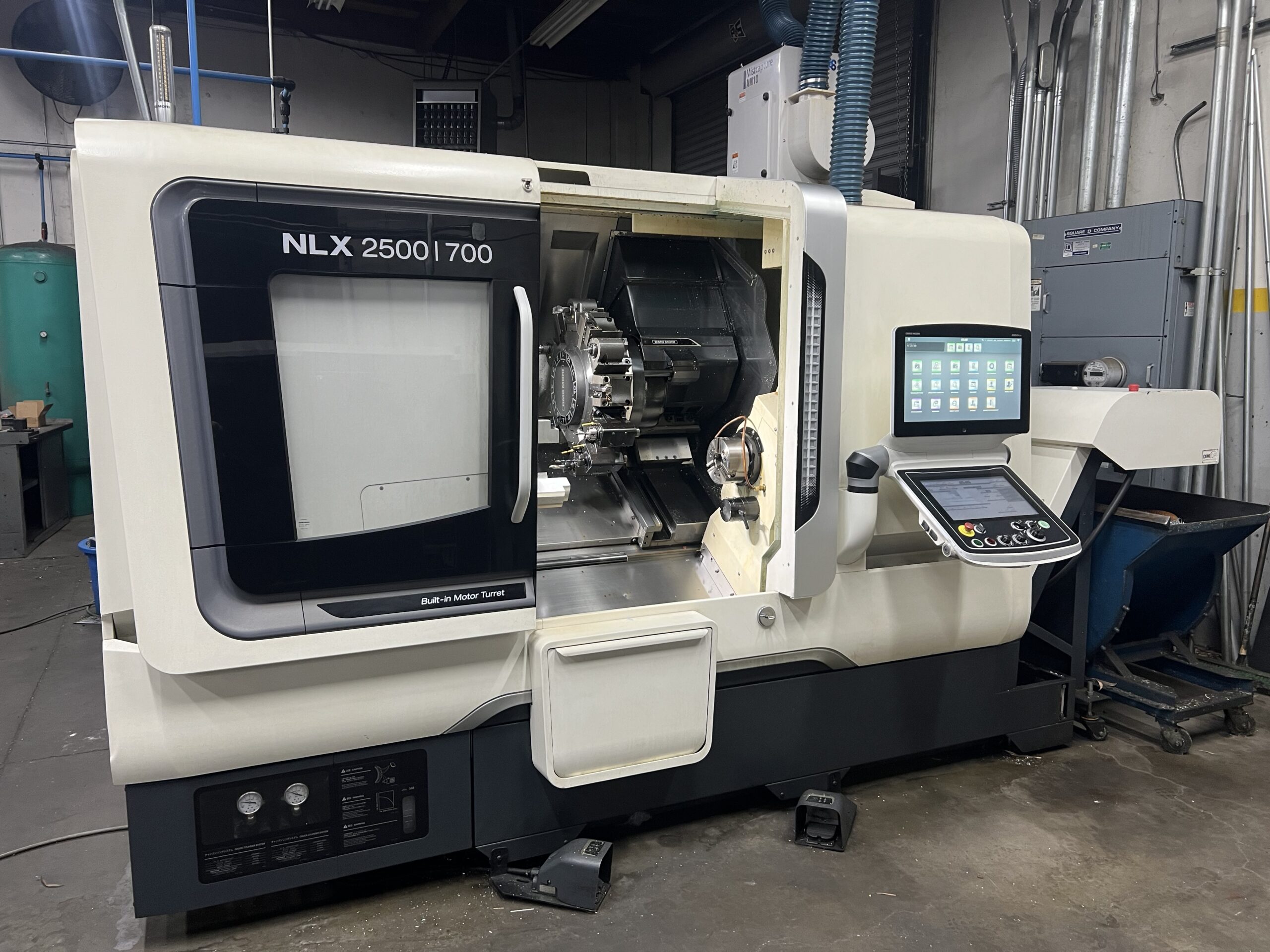

DMG MORI NLX 2500 | 700 CNC Turning Center
Cutting Hours: 6,634 hours (reported)
Manufacturer: DMG MORI
Model: NLX 2500 | 700
Machine Type: CNC Turning Center / CNC Lathe
Machine Description
Industrial CNC turning lathe designed for versatile production use. First‑generation NLX 2500 series has conventional capacity, rigid construction, and standard Y‑axis travel typical of older NLX configurations.
Technical Specifications
Specification Typical Value (First Generation NLX 2500 | 700)
Cutting Hours 6,634
Max Turning Diameter ~460 mm (18.1″)
Max Turning Length ~705–708 mm (27.7″–28″)
Bar Capacity Diameter ~90 mm (3.5″)
X‑Axis Travel ~260 mm (10.2″)
Y‑Axis Travel ~100 mm (4″)
Z‑Axis Travel ~795 mm (31.3″)
Spindle Speed Up to ~4,000 RPM (varies with configuration)
Spindle Motor Power Typically ~25 HP (varies)

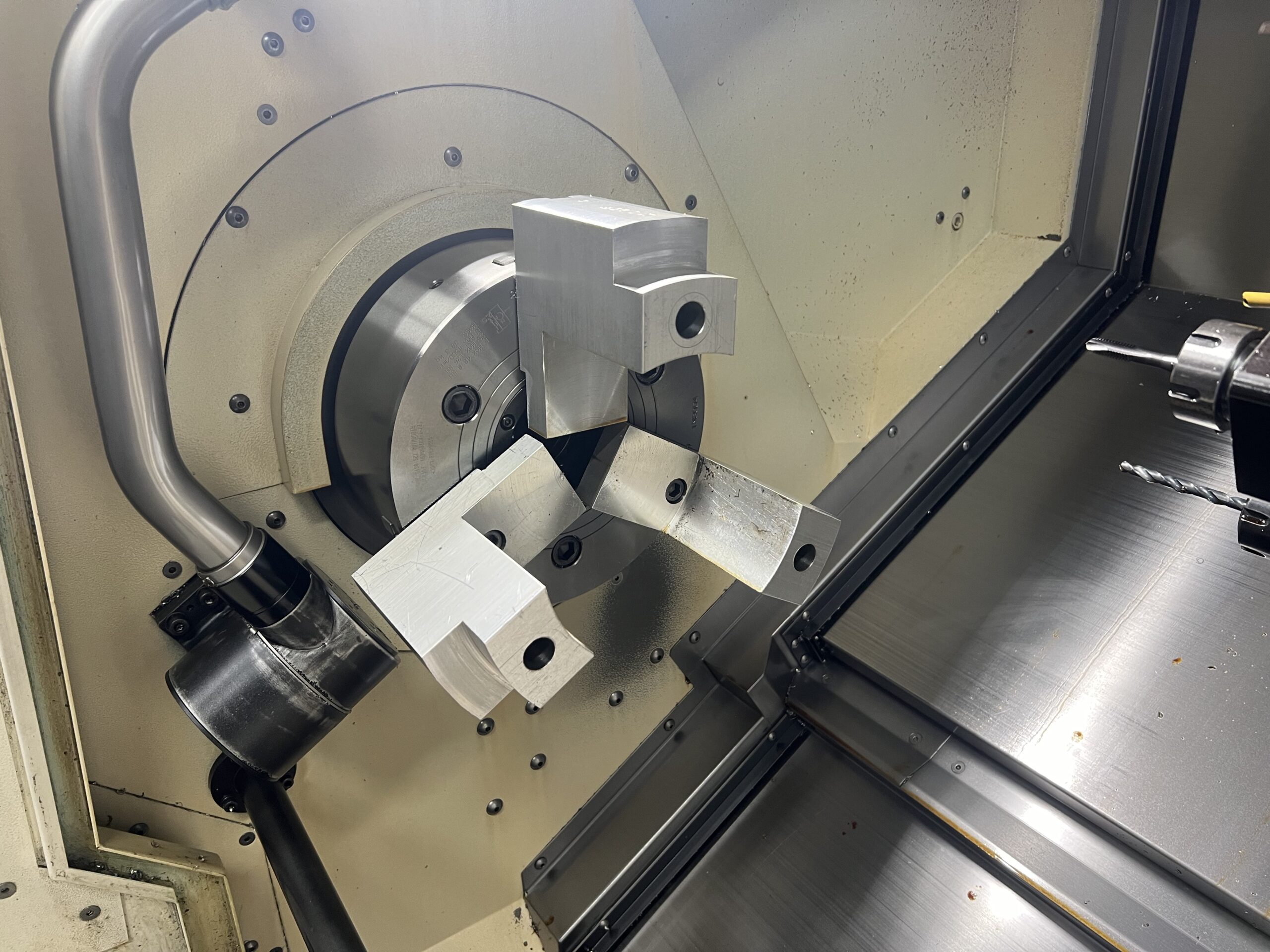

Chuck Size ~10″ hydraulic (typically)
Turret Stations ~12 tool positions (BMT style)

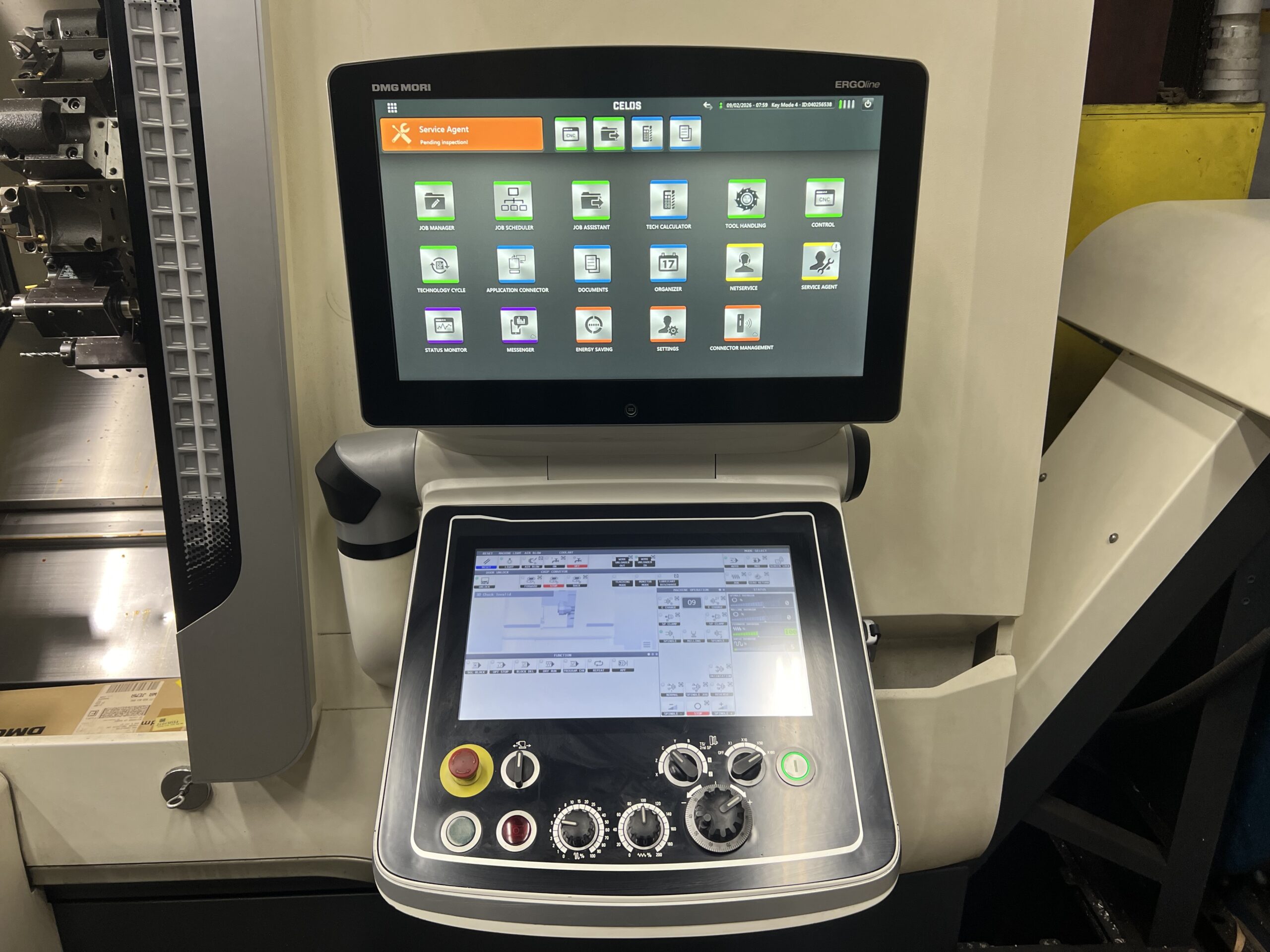

CNC Control MAPPS/Mitsubishi (e.g., M730BM/M730UM with CELOS)
Standard Features
- Rigid slant‑bed construction with slideways for X/Y/Z axes.
- Bar feeder capability (bar capacity ~90 mm).

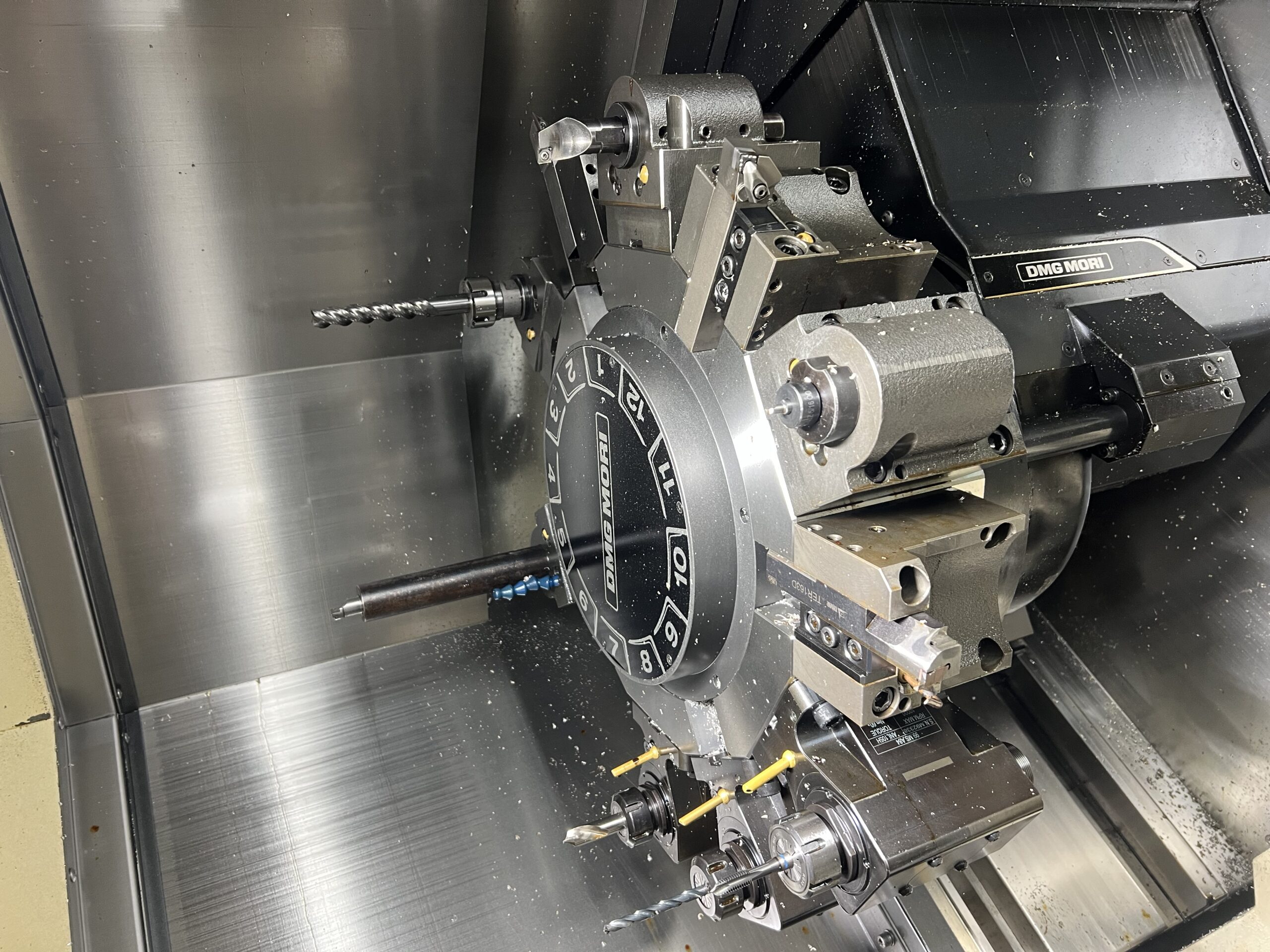

- Turret with ~12 tool stations for turning and live tooling capability.
- Standard coolant system and chip management. (Verify availability on unit)
Notes to Buyers
- Specifications above are typical values for first‑generation NLX 2500 | 700 machines; actual capacities and options can vary by machine.
- Buyers are encouraged to verify control type, tooling options, accessories, and any attachments with photos or inspection prior to bidding.
- Control system may be Mitsubishi‑based with CELOS/MAPPS interface — confirm actual model on unit.
