New equipment · Dake
Dake Belt Grinders

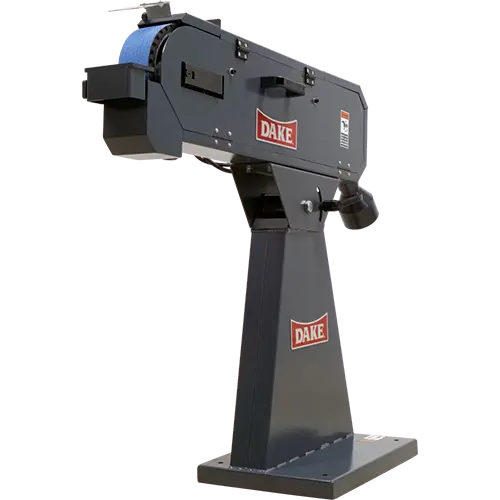

Model: Dake FG-75
$1,925.00 USD
Bay Area CNC Machinery · Authorized Dake dealer
Dake's FG-75 pairs a 4 HP motor with a 3 by 79-inch belt for metal grinding at 6,000 ft/min. Its pivoting head helps position the work at a suitable height, while the opening top cover provides access to the upper belt run for larger parts. An adjustable rest supports the workpiece during grinding.
- Grinding head pivots on its base
- Top cover opens for larger workpieces
- Work rest and backing plate adjust to the job
- Base and Plexiglass guarding included
Contact Bay Area CNC to confirm freight and availability.
Specifications
Dake FG-75| Belt size | 3 × 79 in |
|---|---|
| Motor power | 4 HP |
| Supply voltage | 220 V |
| Electrical phase | Three phase |
| Contact wheel size | 3 × 8 in |
| Belt speed | 6,000 ft/min |
| Weight | 139 lb |
| Included belt | 60 grit |
