ACER Dynamic 24120GNew equipment · ACER
ACER Heavy-Duty Lathes

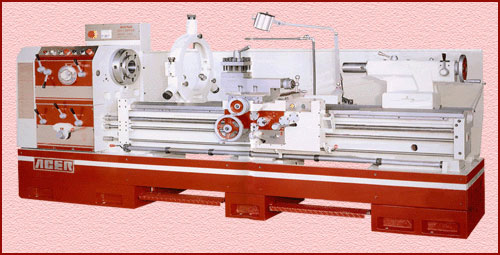

Model: ACER Dynamic 24120G
$51,600.00 USD
Manufacturer list price for the standard machine. Freight, tax and optional equipment are quoted separately.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.
The Dynamic 24120G is a heavy-duty engine lathe from ACER. Center height: 11-7/8". Swing over bed: 23-5/8".
- Swing over gap (gap-bed configuration): 32-1/4"
- Swing over cross slide: 15"
- Distance between centers: 120"
- Spindle nose: ASA 1-11 or D1-11
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER Dynamic 24120GACER Dynamic 24120G specifications| Center height | 11-7/8" |
|---|
| Swing over bed | 23-5/8" |
|---|
| Swing over gap (gap-bed configuration) | 32-1/4" |
|---|
| Swing over cross slide | 15" |
|---|
| Distance between centers | 120" |
|---|
| Spindle nose | ASA 1-11 or D1-11 |
|---|
| Spindle bore diameter | 4-1/8" |
|---|
| Spindle speeds | 25~1200 rpm / (12 steps) |
|---|
| Cross slide travel | 13" |
|---|
| Bed width | 16-1/2" |
|---|
| Main drive motor | 15 HP |
|---|
| Net Weight | 8690 lbs |
|---|
