ACER Oil Country Lathes

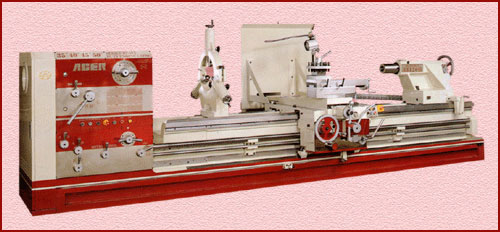

Model: ACER Oil Country-35" ~ 70" Series
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.
The Oil Country-35" ~ 70" Series is a large-capacity lathe from ACER. Swing over bed: 35". Swing over gap (gap-bed configuration): 52-3/4".
- Swing over cross slide: 24"
- Distance between centers: 60" ~ 800"
- Spindle nose: A2-11
- Spindle bore diameter: 6"
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER Oil Country-35" ~ 70" Series| Swing over bed | 35" |
|---|---|
| Swing over gap (gap-bed configuration) | 52-3/4" |
| Swing over cross slide | 24" |
| Distance between centers | 60" ~ 800" |
| Spindle nose | A2-11 |
| Spindle bore diameter | 6" |
| Spindle speeds | 6 ~ 740 |
| Cross slide travel | 26-3/8" |
| Bed width | 22" |
| Main drive motor | 30 / 40 HP (opt.) |
