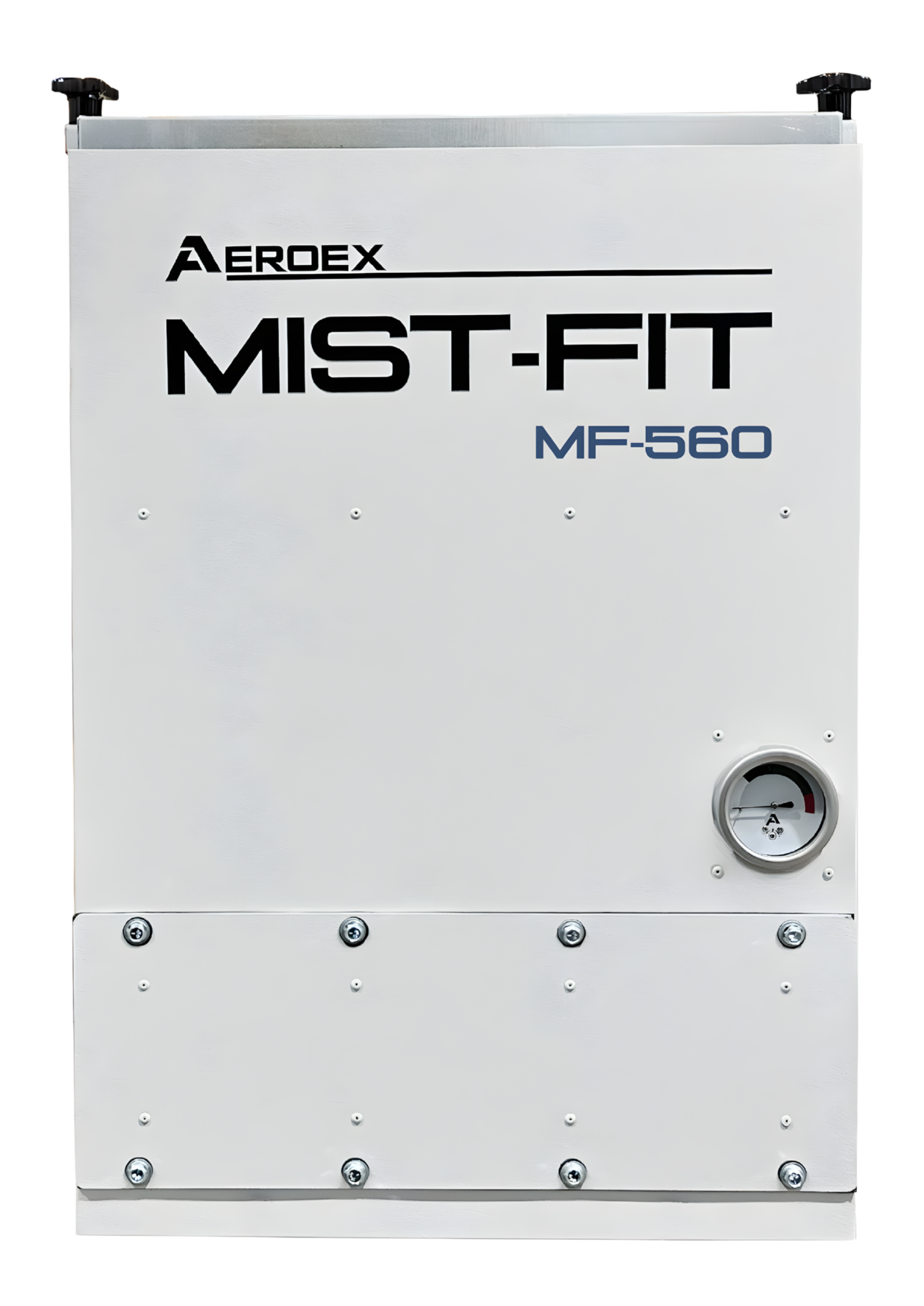

Aeroex Mist-Fit MF-560 Mist Collector
New equipment
High-pressure 500-600 CFM mist collector engineered for Swiss lathes and demanding machining applications.
- Air Flow: 500-600 CFM
- Recommended Volume: Up to 250 ft³
- Motor: 0.75 hp
- Best For: Swiss lathes and high-pressure applications
Download MF-560 Brochure (PDF)
Compare the MF-550.
Availability: In Stock
Ask About ThisDescription
The Aeroex Mist-Fit MF-560 is engineered for high-pressure coolant, oil mist, smoke, and demanding machining applications. Its larger filtration housing and optional pre-filtration box make it particularly well suited to Swiss lathes and screw-machine environments.
Technical Specifications
| Air flow | 500-600 CFM |
|---|---|
| Recommended enclosure | Up to 250 cubic feet |
| Motor | 0.75 hp |
| Voltage options | 115/1/60, 220/1/60, 230/3/60, or 460/3/60 |
| Inlet connection | 6-inch diameter |
| Sound level | 68 dB(A) |
| Coolant pressure range | 30-3000 psi |
| Oil pressure range | 30-2000 psi |
| pH range | 5.8-9.8 |
| Maximum temperature | 125 degrees F / 50 degrees C |
| Weight | 86 lb |
| Dimensions (L x W x H) | 18.9 x 18.9 x 28.8 inches |
| HEPA filtration | Optional |
Progressive Multi-Stage Filtration
- Mechanical element: separates the largest mist droplets and swarf so collected fluid can drain back toward the machine sump.
- Demister element: supports the first stage with a washable separation layer.
- MERV 15 fibre-bed filter: depth-loads fine mist and smoke particles for long service life.
- Optional HEPA stage: available when the application requires additional sub-micron filtration.
Mounting and Installation Options
Bay Area CNC Machinery can help select the collector configuration and mounting arrangement for the machine enclosure and available shop space.
- Direct machine mounting
- Wall mount
- Side mount
- Suspension kit
- Pedestal mount
- Adjustable floor stand
- Blank or machine-specific base plates
Available Configurations
- 115 V single-phase, 220 V single-phase, 230 V three-phase, and 460 V three-phase electrical configurations
- Optional pre-filtration box for oil, heavy mist, and Swiss screw-machine applications
- Optional HEPA and combination HEPA/carbon filtration
- Alternative inlet, base-plate, hose, hood, and mounting configurations
Final configuration, electrical requirements, mounting hardware, freight, and installation requirements will be confirmed during quotation.
