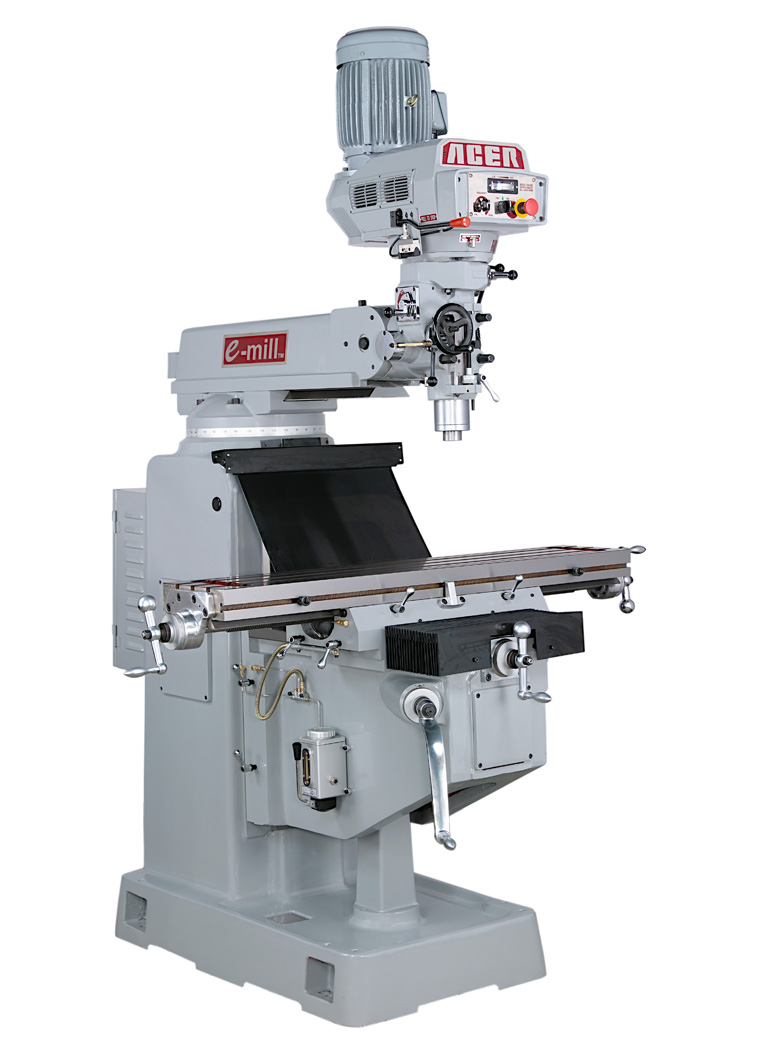

ACER E-mill 3VKH
ACER E-mill 3VKH

New equipment · ACER

ACER Milling Machines

Model: ACER E-mill 3VKH

$15,100.00 USD

Manufacturer list price for the standard machine. Freight, tax and optional equipment are quoted separately.

Bay Area CNC Machinery · Authorized ACER dealer

The E-mill 3VKH is a variable-speed vertical knee mill from ACER. Table size: 10 × 50 in; 10 × 54 in option. Longitudinal travel: 32-1/2 in; 36-1/2 in with 54-inch table.

  • Cross travel: 17 in
  • Vertical travel: 19 in
  • Ram travel: 20 in
  • Spindle motor: 3 HP
Email Bay Area CNC Call (925) 256-8111

Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.

Specifications

ACER E-mill 3VKH
ACER E-mill 3VKH specifications
Table size10 × 50 in; 10 × 54 in option
Longitudinal travel32-1/2 in; 36-1/2 in with 54-inch table
Cross travel17 in
Vertical travel19 in
Ram travel20 in
Spindle motor3 HP
Spindle speed60–4,500 rpm
Spindle taperR-8
Quill diameter3-3/8 in
Net weight3,300 lbs
Quill travel5 in
