New equipment · ACER
ACER Milling Machines
Model: ACER E-mill 5VK
$18,000.00 USD
Manufacturer list price for the standard machine. Freight, tax and optional equipment are quoted separately.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.

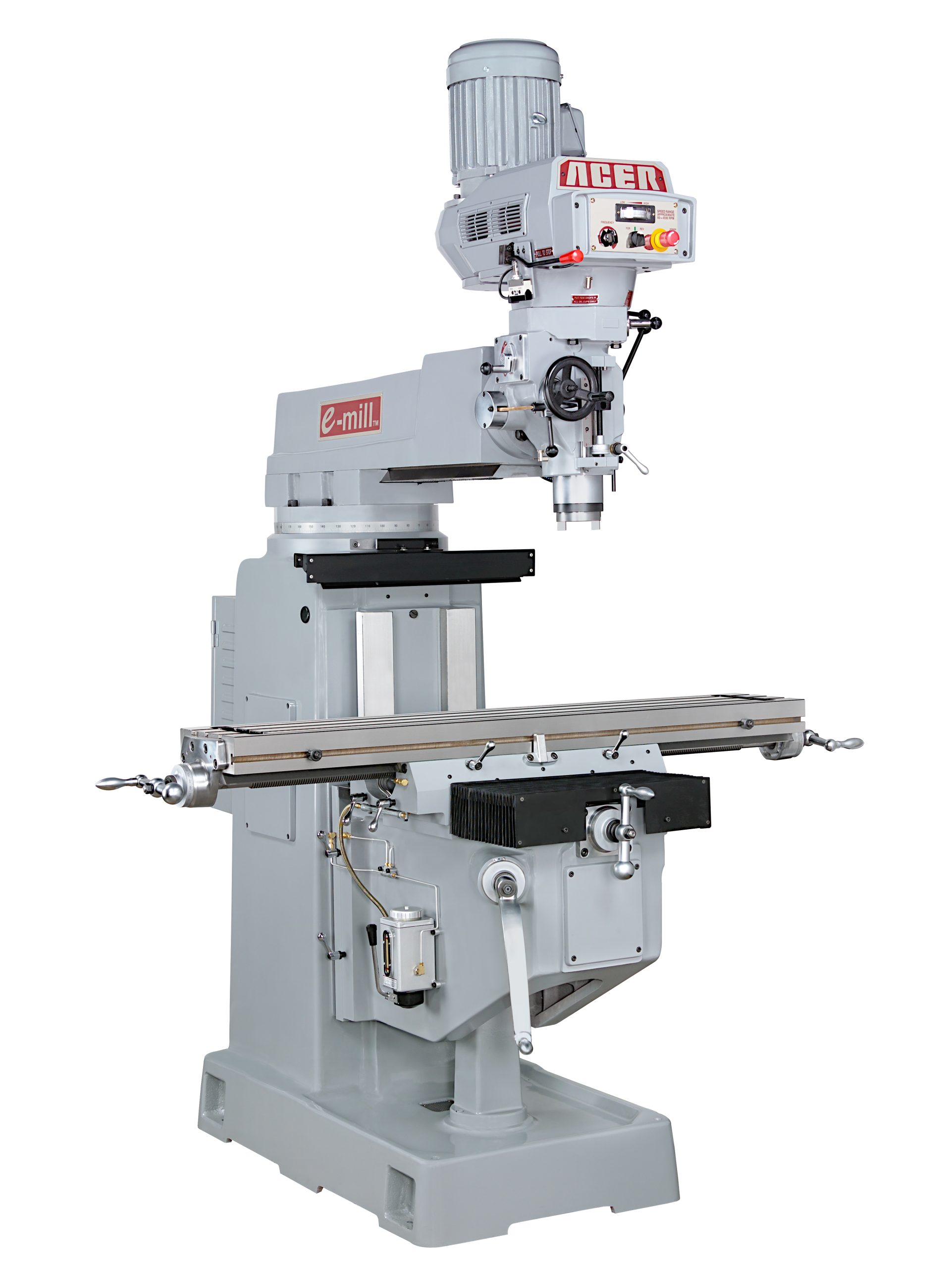

The E-mill 5VK is a variable-speed vertical knee mill from ACER. Table size: 10 × 50 in; 10 × 54 in option. Longitudinal travel: 32-1/2 in; 36-1/2 in with 54-inch table.
- Cross travel: 16 in
- Vertical travel: 19 in
- Ram travel: 20 in
- Spindle motor: 5 HP
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER E-mill 5VK| Table size | 10 × 50 in; 10 × 54 in option |
|---|---|
| Longitudinal travel | 32-1/2 in; 36-1/2 in with 54-inch table |
| Cross travel | 16 in |
| Vertical travel | 19 in |
| Ram travel | 20 in |
| Spindle motor | 5 HP |
| Spindle speed | 50–3,750 rpm |
| Spindle taper | NST #40 |
| Quill diameter | 4 in |
| Net weight | 3,500 lbs |
| Quill travel | 5 in |
