ACER Surface Grinders

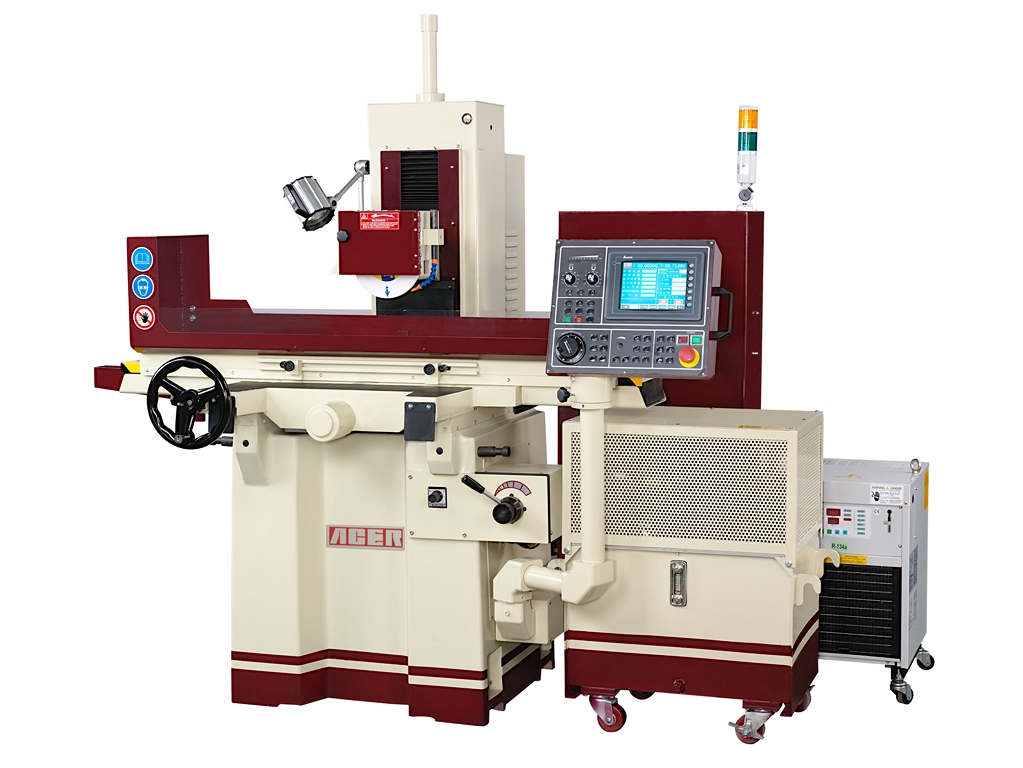

Model: ACER eGrinder-618II-NC
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.
The eGrinder-618II-NC is a precision surface grinder from ACER. Table / work size: 200 × 510 mm / 7.87 × 20.08 in. Longitudinal travel: 600 mm / 23.62 in (manual).
- Cross travel: 230 mm / 9.06 in
- Spindle center to table: 400 mm / 15.75 in
- Spindle motor: 2 HP
- Wheel speed: 3,600–6,000 rpm at 60 Hz
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER eGrinder-618II-NC| Table / work size | 200 × 510 mm / 7.87 × 20.08 in |
|---|---|
| Longitudinal travel | 600 mm / 23.62 in (manual) |
| Cross travel | 230 mm / 9.06 in |
| Spindle center to table | 400 mm / 15.75 in |
| Spindle motor | 2 HP |
| Wheel speed | 3,600–6,000 rpm at 60 Hz |
| Grinding wheel (diameter × width × bore) | 8 × 1/2 × 1-1/4 in |
| Net weight | 3,234 lbs |
