ACER Surface Grinders
Model: ACER Supra-1020PD
$41,150.00 USD
Manufacturer list price for the standard machine. Freight, tax and optional equipment are quoted separately.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.

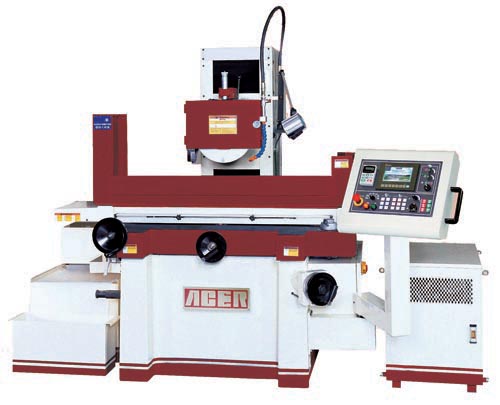

The Supra-1020PD is a precision surface grinder from ACER. Table / work size: 10 × 20 in grinding capacity. Longitudinal travel: 24-4/5 in (manual).
- Cross travel: 11-3/4 in (manual)
- Spindle center to table: 22-1/2 in
- Spindle motor: 3 HP
- Wheel speed: 3,450 rpm at 60 Hz
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER Supra-1020PD| Table / work size | 10 × 20 in grinding capacity |
|---|---|
| Longitudinal travel | 24-4/5 in (manual) |
| Cross travel | 11-3/4 in (manual) |
| Spindle center to table | 22-1/2 in |
| Spindle motor | 3 HP |
| Wheel speed | 3,450 rpm at 60 Hz |
| Grinding wheel (diameter × width × bore) | 8 × 3/4 × 1-1/4 in |
| Net weight | 3,982 lbs |
