New equipment · ACER
ACER Surface Grinders

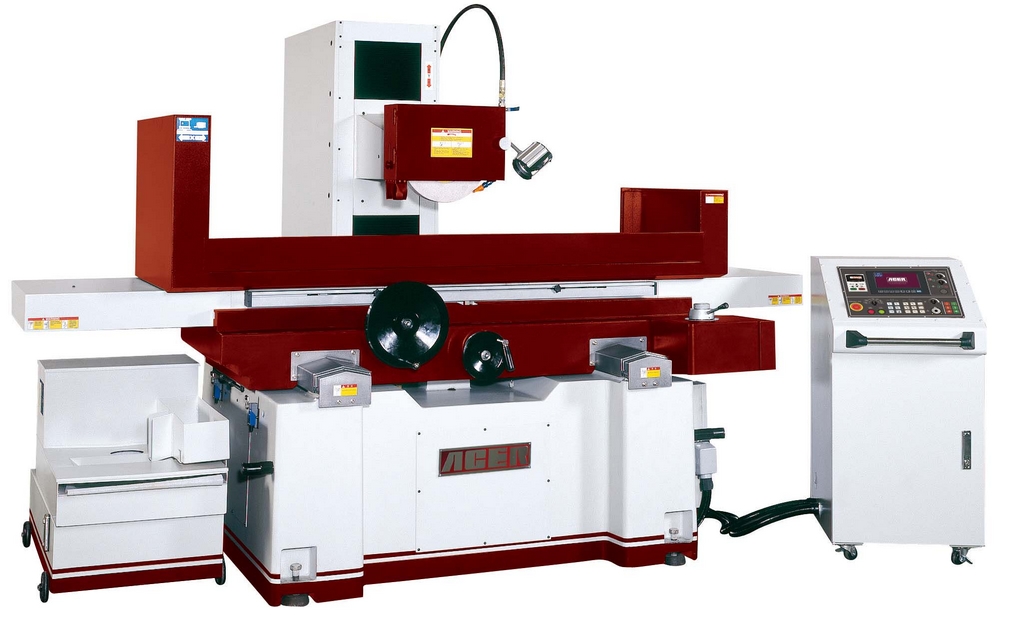

Model: ACER Supra-2040PD
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.
The Supra-2040PD is a precision surface grinder from ACER. Table / work size: 20 × 40 in. Longitudinal travel: 43.31 in (manual).
- Cross travel: 20.47 in (manual)
- Spindle center to table: 28.35 in
- Spindle motor: 7.5 HP
- Wheel speed: 1,750 rpm at 60 Hz
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER Supra-2040PD| Table / work size | 20 × 40 in |
|---|---|
| Longitudinal travel | 43.31 in (manual) |
| Cross travel | 20.47 in (manual) |
| Spindle center to table | 28.35 in |
| Spindle motor | 7.5 HP |
| Wheel speed | 1,750 rpm at 60 Hz |
| Grinding wheel (diameter × width × bore) | 14 × 2 × 5 in |
| Net weight | 10,560 lbs |
