ACER Surface Grinders

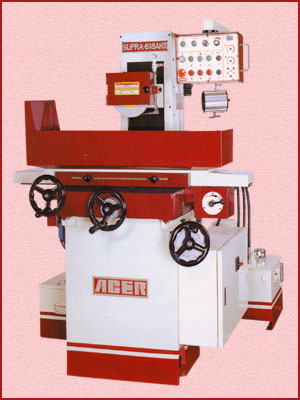

Model: ACER Supra-618AH-II
$19,000.00 USD
Manufacturer list price for the standard machine. Freight, tax and optional equipment are quoted separately.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.
The Supra-618AH-II is a precision surface grinder from ACER. Table / work size: 6 × 18 in. Longitudinal travel: 20 in.
- Cross travel: 7-1/2 in
- Spindle center to table: 19-5/16 in
- Spindle motor: 3 HP
- Wheel speed: 3,450 rpm
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER Supra-618AH-II| Table / work size | 6 × 18 in |
|---|---|
| Longitudinal travel | 20 in |
| Cross travel | 7-1/2 in |
| Spindle center to table | 19-5/16 in |
| Spindle motor | 3 HP |
| Wheel speed | 3,450 rpm |
| Grinding wheel (diameter × width × bore) | 8 × 1/2 × 1-1/4 in |
| Net weight | 1,804 lbs |
