ACER Vertical Machining Centers

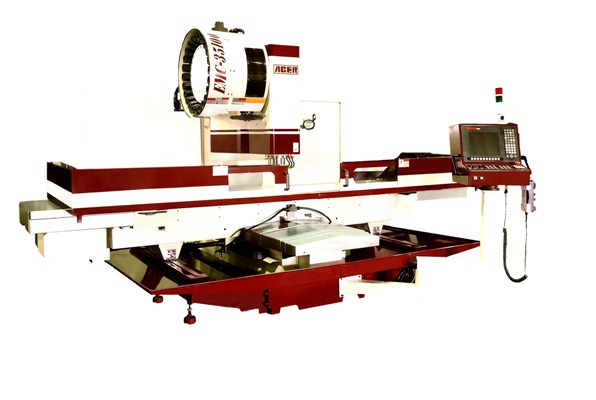

Model: ACER EMC-35100 · Fagor
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.
The EMC-35100 · Fagor is a vertical machining center from ACER. Table size: 112" x 30". Table load: 3,960 lbs.
- X travel: 98.4"
- Y travel: 33" / 35" (larger travel without splash guard)
- Z travel: 25.5"
- Spindle speed: 60–8,000 rpm
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER EMC-35100 · Fagor| Table size | 112" x 30" |
|---|---|
| Table load | 3,960 lbs |
| X travel | 98.4" |
| Y travel | 33" / 35" (larger travel without splash guard) |
| Z travel | 25.5" |
| Spindle speed | 60–8,000 rpm |
| Tool capacity | 24 pcs |
| Spindle motor (AC digital) | 13.3 HP |
| Net weight (approx.) | 17,600 lbs |
