New equipment · ACER
ACER Vertical Machining Centers
Model: ACER VMC-2240XL · Fagor
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.

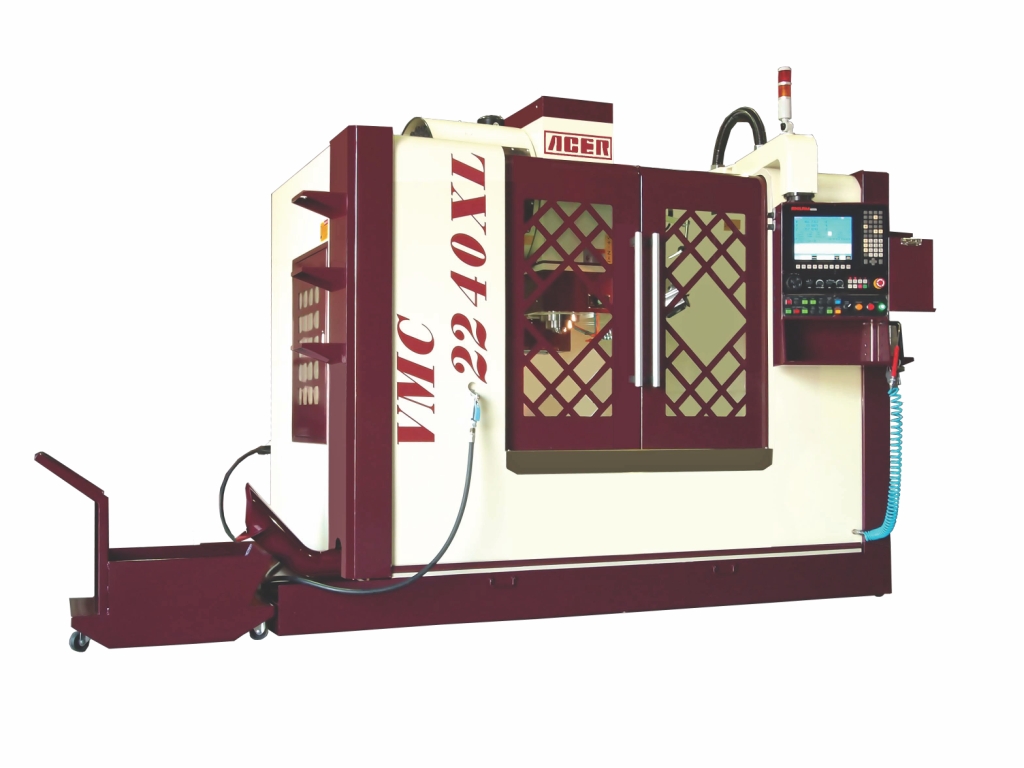

The VMC-2240XL · Fagor is a vertical machining center from ACER. Table size: 43.3" x 22". Table load: 2,200 lbs.
- X travel: 40.16"
- Z travel: 23.62"
- Spindle taper: CAT #40 or BT #40
- Spindle speed: 8k rpm (Std) / 12k rpm (Opt)
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER VMC-2240XL · Fagor| Table size | 43.3" x 22" |
|---|---|
| Table load | 2,200 lbs |
| X travel | 40.16" |
| Z travel | 23.62" |
| Spindle taper | CAT #40 or BT #40 |
| Spindle speed | 8k rpm (Std) / 12k rpm (Opt) |
| Tool capacity | Arm Type 24T (2.1 sec) |
| Spindle motor (AC digital) | 10 HP (15 HP 30 min peak) |
| Net weight (approx.) | 13,860 lbs |
