New equipment · ACER
ACER Vertical Machining Centers
Model: ACER EMC-3580 · Fagor
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.

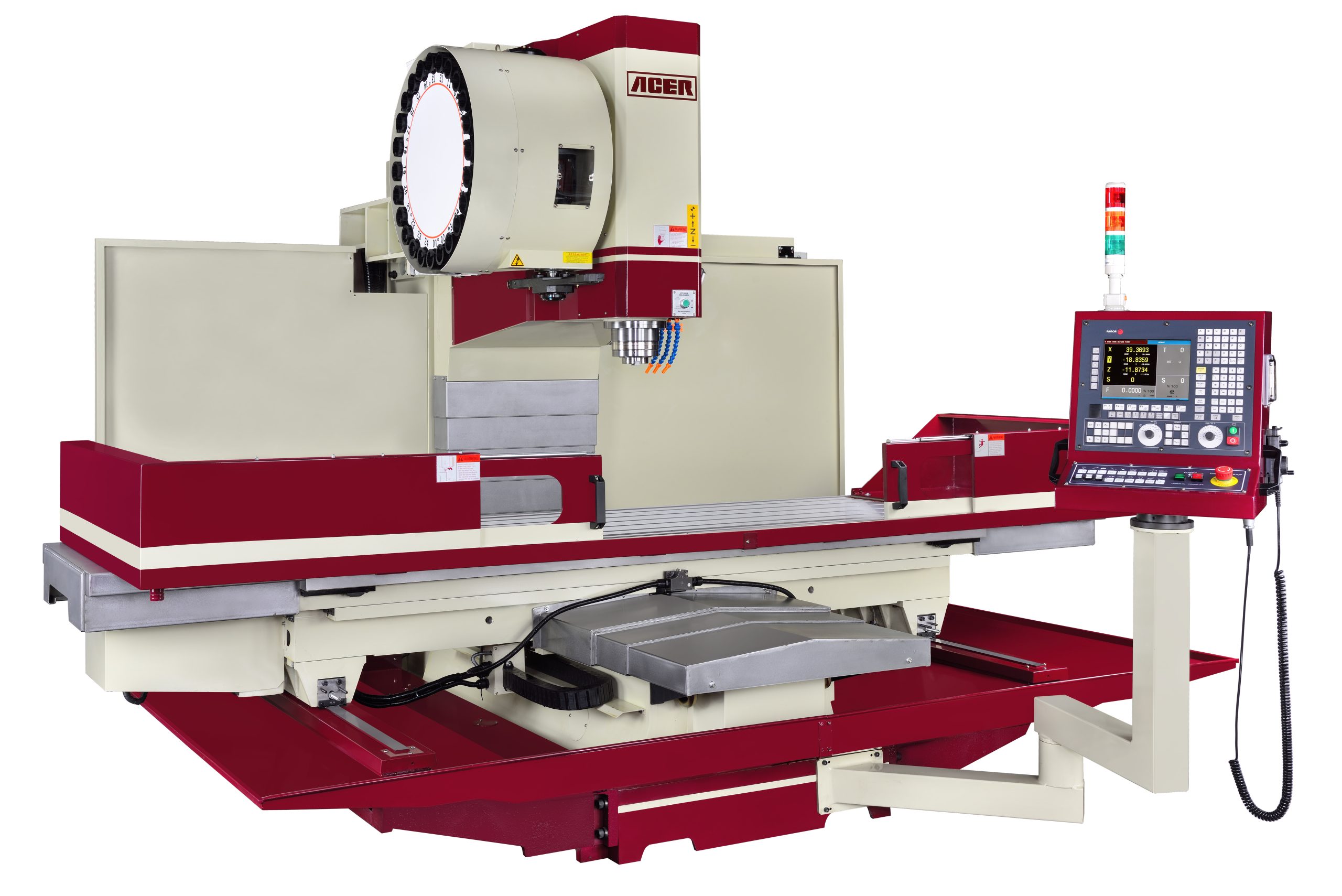

The EMC-3580 · Fagor is a vertical machining center from ACER. Table size: 92" x 30". Table load: 3,960 lbs.
- X travel: 78.7"
- Y travel: 33.8" / 35" (larger travel without splash guard)
- Z travel: 25.5"
- Spindle speed: 60 ~ 8,000 rpm
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER EMC-3580 · Fagor| Table size | 92" x 30" |
|---|---|
| Table load | 3,960 lbs |
| X travel | 78.7" |
| Y travel | 33.8" / 35" (larger travel without splash guard) |
| Z travel | 25.5" |
| Spindle speed | 60 ~ 8,000 rpm |
| Tool capacity | 24 pcs |
| Spindle motor (AC digital) | 13.3 HP |
| Net weight (approx.) | 16,500 lbs |
