New equipment · ACER
ACER Vertical Machining Centers

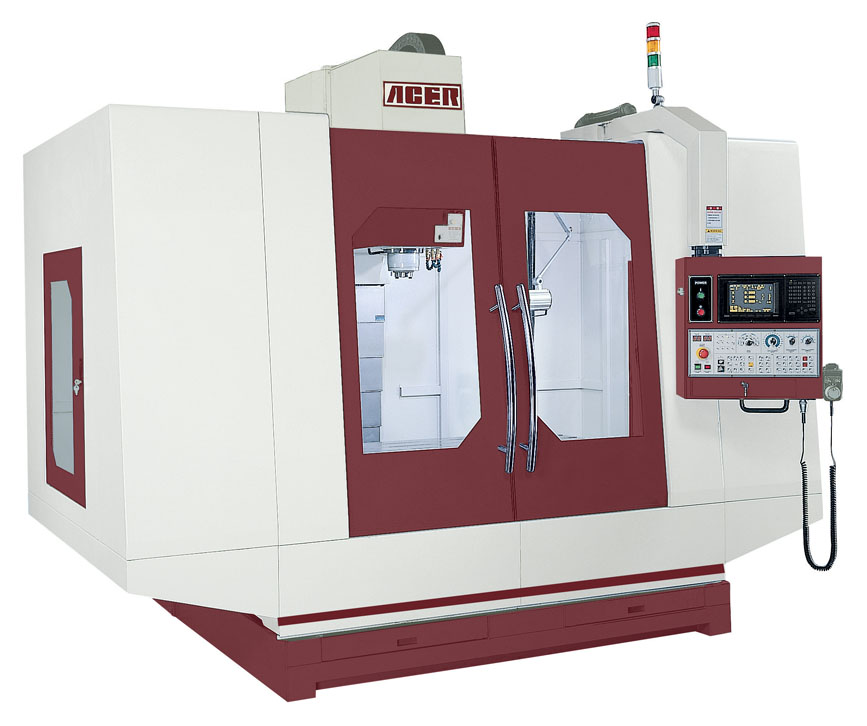

Model: ACER VMC-1370H · Fanuc
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.
The VMC-1370H · Fanuc is a vertical machining center from ACER. Table load: 1200 kgs / 2645.6 lbs. X travel: 1300 mm / 51.2".
- Y travel: 700 mm / 27.6"
- Z travel: 700 mm / 27.6"
- Spindle taper/Bore diameter: CAT #40 or BT#40 / CAT #50 or BT #50
- Spindle motor-cont/30 min: 15HP / 11 kw
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER VMC-1370H · Fanuc| Table load | 1200 kgs / 2645.6 lbs |
|---|---|
| X travel | 1300 mm / 51.2" |
| Y travel | 700 mm / 27.6" |
| Z travel | 700 mm / 27.6" |
| Spindle taper/Bore diameter | CAT #40 or BT#40 / CAT #50 or BT #50 |
| Spindle motor-cont/30 min | 15HP / 11 kw |
| Spindle speed | 8000 / 6000 rpm |
| Tool capacity | 24 pcs |
| Net weight (approx.) | 10000 kgs / 22046.2 lbs |
