ACER Vertical Machining Centers
Model: ACER VMC-1832 · Fagor
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.

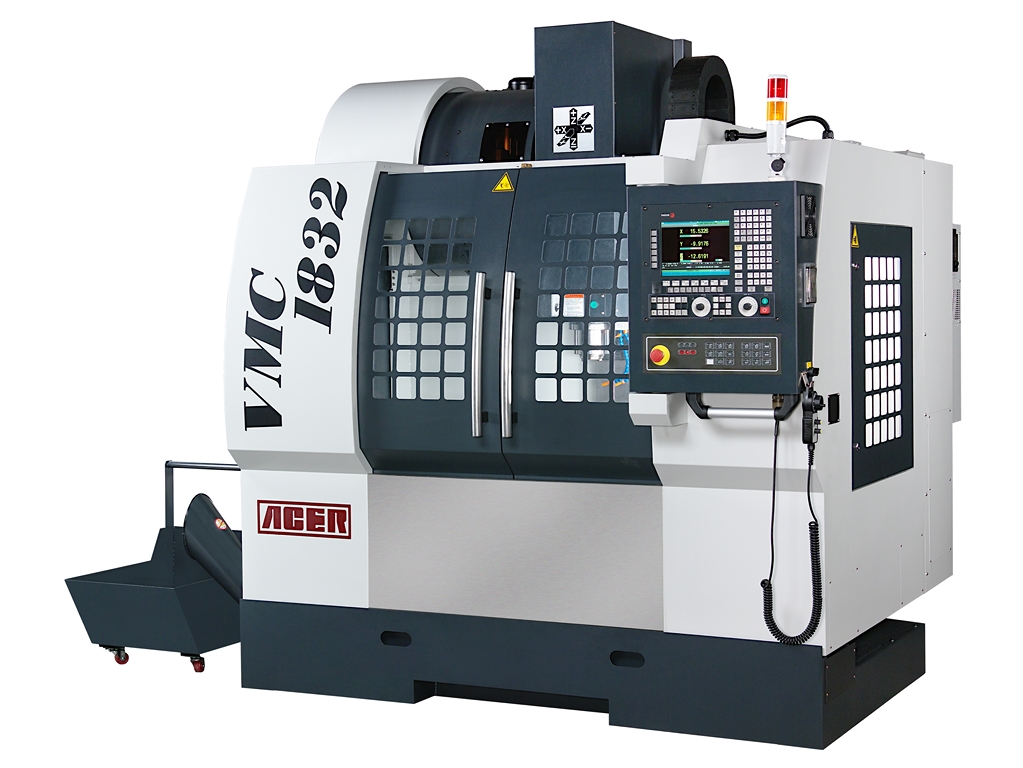

The VMC-1832 · Fagor is a vertical machining center from ACER. Control: Fagor CNC. Table size: 35.4 × 17.7 in / 900 × 450 mm.
- X travel: 31.5 in / 800 mm
- Y travel: 18.1 in / 460 mm
- Z travel: 20.5 in / 520 mm
- Table load: 550 lbs / 250 kg
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER VMC-1832 · Fagor| Control | Fagor CNC |
|---|---|
| Table size | 35.4 × 17.7 in / 900 × 450 mm |
| X travel | 31.5 in / 800 mm |
| Y travel | 18.1 in / 460 mm |
| Z travel | 20.5 in / 520 mm |
| Table load | 550 lbs / 250 kg |
| Spindle taper | CAT40; BT40 optional |
| Spindle speed | 10,000 rpm |
| Tool capacity | 24 |
| Net weight | 7,937 lbs / 3,600 kg |
