New equipment · ACER
ACER Vertical Machining Centers
Model: ACER VMC-955H · Fanuc
Request a Quote USD
Contact Bay Area CNC for current pricing and configuration.
Bay Area CNC Machinery · Authorized ACER dealer
No matching model in this family. Try a shorter model number.

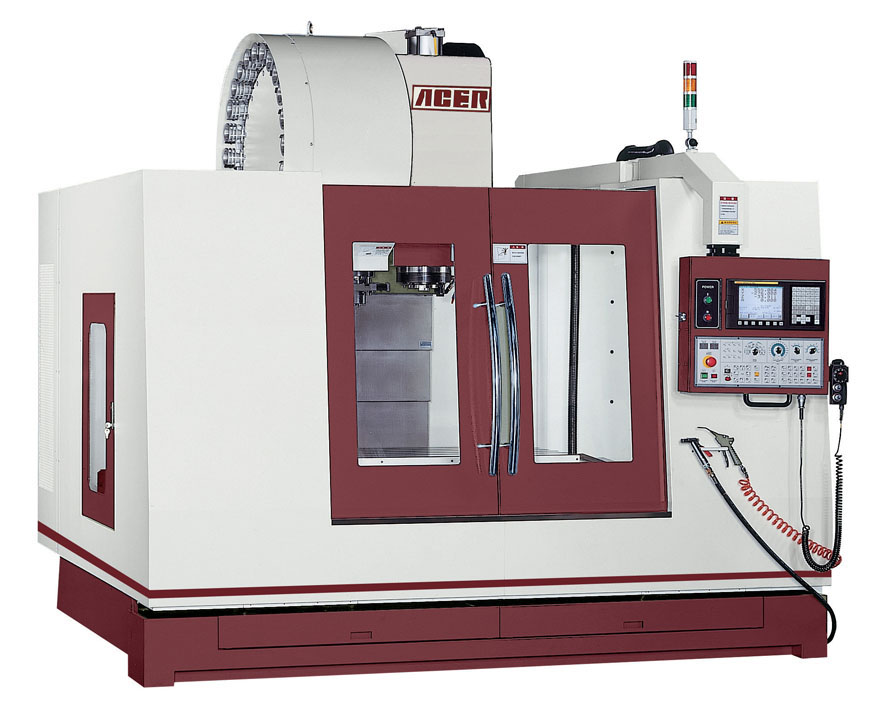

The VMC-955H · Fanuc is a vertical machining center from ACER. Table load: 600 kgs/ 1322.78 lbs. X travel: 900 mm / 35.4".
- Y travel: 550 mm / 21.7"
- Z travel: 530 mm / 20.9"
- Spindle taper/Bore diameter: CAT #40 or BT#40 / CAT #50 or BT #50
- Spindle motor-cont/30 min: 10HP /7.5 kw
Confirm current configuration, availability and freight with Bay Area CNC. Prices are based on FOB Fullerton, California.
Specifications
ACER VMC-955H · Fanuc| Table load | 600 kgs/ 1322.78 lbs |
|---|---|
| X travel | 900 mm / 35.4" |
| Y travel | 550 mm / 21.7" |
| Z travel | 530 mm / 20.9" |
| Spindle taper/Bore diameter | CAT #40 or BT#40 / CAT #50 or BT #50 |
| Spindle motor-cont/30 min | 10HP /7.5 kw |
| Spindle speed | 8000 rpm |
| Net weight (approx.) | 5600 kgs / 12345.9 lbs |
